Description

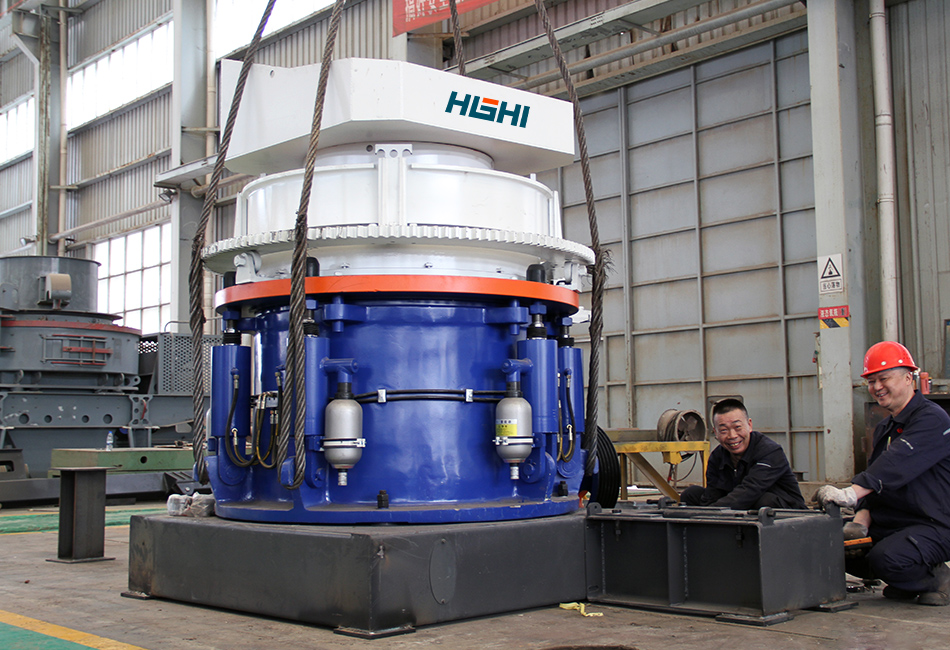

The multi-cylinder hydraulic cone crusher marketed by HGHI belongs to the HP series and stands out as the most dominant, high-efficiency crushing equipment in today's secondary and tertiary crushing sectors. It derives its name "multi-cylinder" from the multiple hydraulic cylinders distributed around the mantle. Equipped with an intelligent PLC control system, the machine monitors oil temperature, oil pressure, and motor load in real time. It can also automatically adjust the closed side setting (CSS) based on the feed rate to ensure consistent "choke-feeding" operation. equipment in the mining industry.
Performance Advantages
- High cubical yield & excellent shape

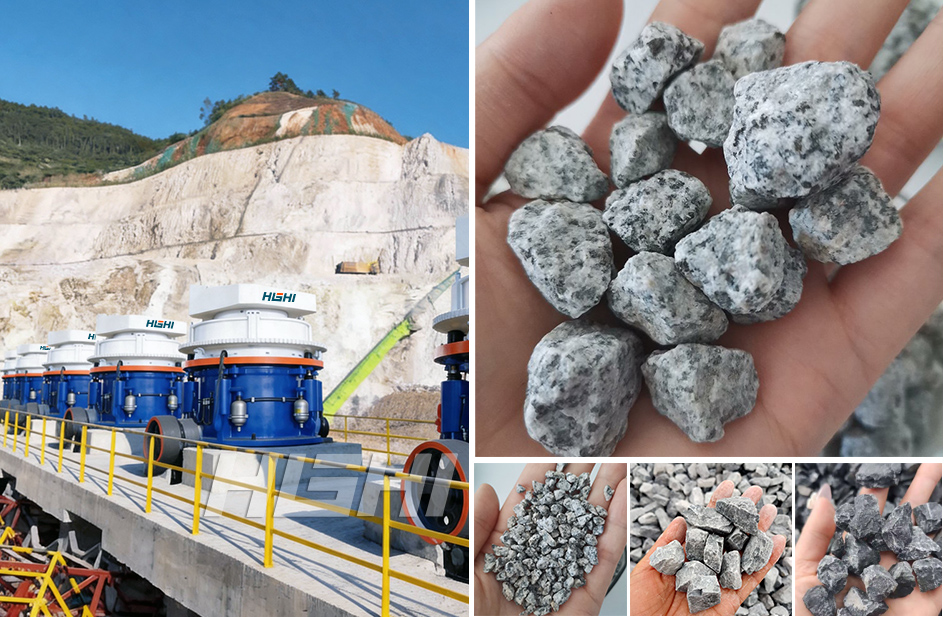

Thanks to the laminated crushing principle, materials fracture mostly along their own crystal textures and weak planes. As a result, the finished products are mostly standard cubic aggregates, which can fully meet the strict gradation requirements for high-performance concrete. - The structure is highly precise

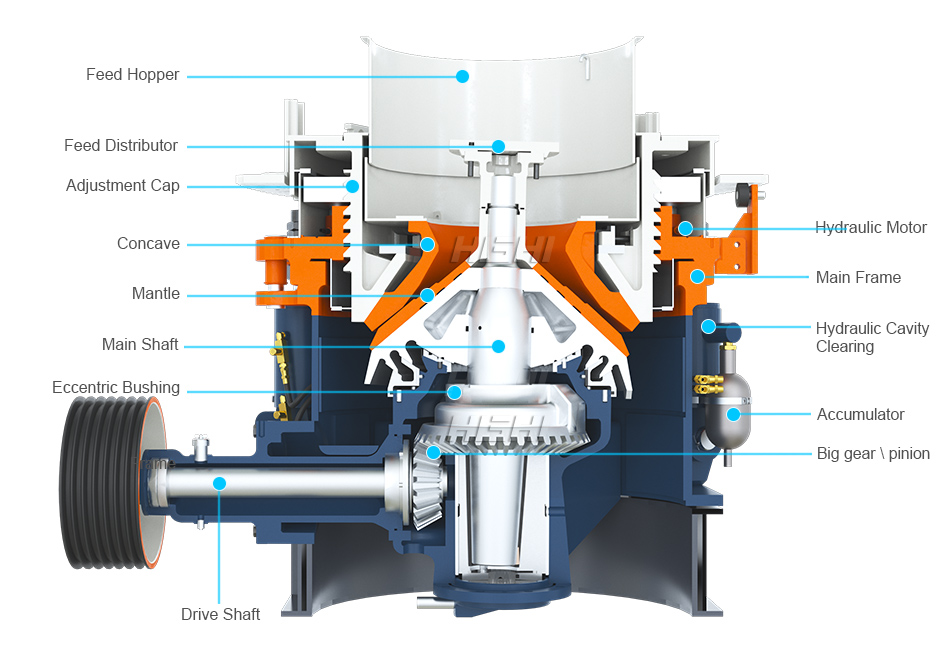

The structure of the multi-cylinder hydraulic cone crusher mainly consists of the main frame, transmission system, eccentric sleeve bearing assembly, moving cone (inner cone) assembly, fixed cone (outer cone) assembly, multi-cylinder hydraulic locking and releasing system, and lubrication control system. - Flaky particles /needle-like and flaky aggregate
The multi-cylinder hydraulic cone crusher is mainly composed of the frame, fixed cone assembly, moving cone assembly, eccentric transmission mechanism, circumferentially arranged multiple locking cylinders, hydraulic system and thin oil lubrication system. With uniform force borne by multiple cylinders, it delivers greater crushing force. Adopting the laminated crushing principle, it produces finished aggregate with regular particle shape and fewer flaky particles.
Working Principle

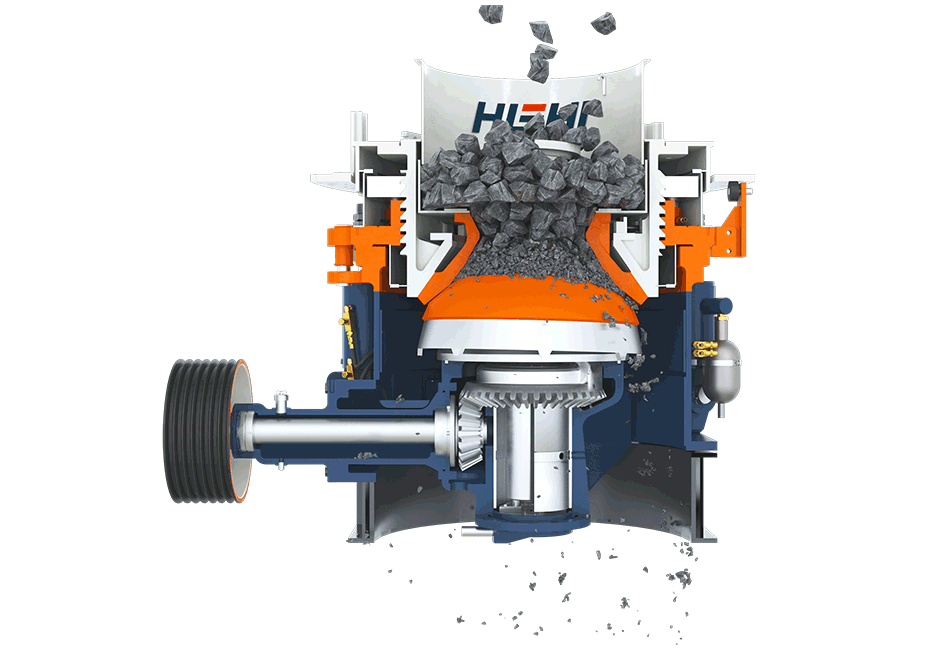

The motor drives the eccentric sleeve through gears to make the moving cone swing eccentrically. Materials are squeezed and crushed between the moving cone and fixed cone. Qualified materials fall and discharge by gravity to realize continuous crushing.
More Pictures
Question&Answer
Q：Applicable Materials of Multi-cylinder Hydraulic Cone Crusher?
A：1、The multi-cylinder hydraulic cone crusher is a fine crushing machine, not suitable for oversized stones. Its feed particle size ranges from 100 mm to 350 mm, and it can crush ores with compressive strength between 100–300 MPa, including hard rocks and ores such as granite, basalt, river pebbles, iron ore and quartz stone.
2、This equipment is not ideal for raw materials with high mud content, strong viscosity or excessive moisture. Excessive mud is prone to cavity blockage, so pre-screening is required before crushing.Q：Wearing Parts & Replacement Cycle of Multi-cylinder Cone Crusher?

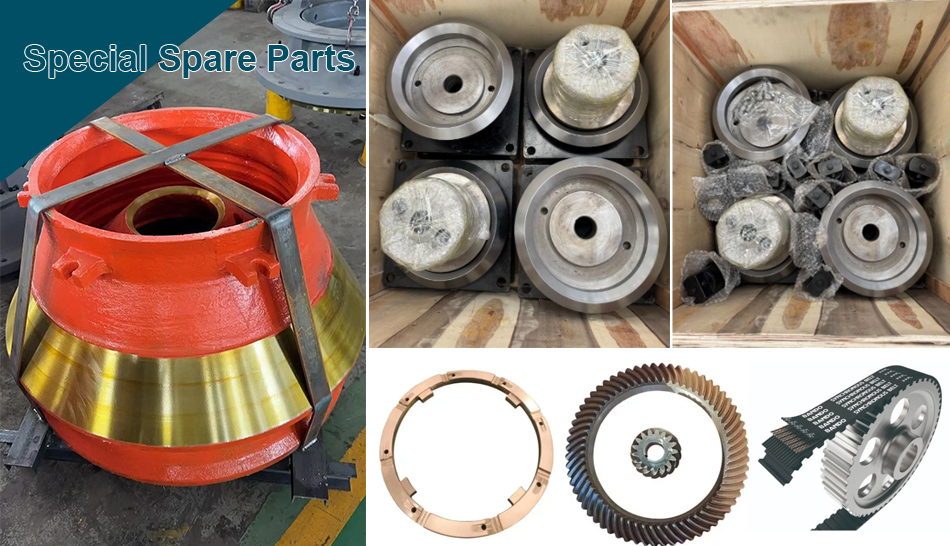

A：The multi-cylinder hydraulic cone crusher is a durable crusher requiring minimal maintenance. Its primary wearing parts are the moving cone liner and fixed cone liner. Function: They directly squeeze stones and are the most severely worn components of the whole machine. The main vulnerable parts are the mantle and concave, which need replacement every 3–6 months under hard rock working conditions. Various sealing parts shall be replaced regularly every 3–6 months; internal components such as copper bushings and gears are replaced during overhaul every 1–2 years; guard plates are replaced as needed according to wear conditions.
Q：Selection Guide: Stationary vs Mobile Multi-cylinder Cone Crusher?

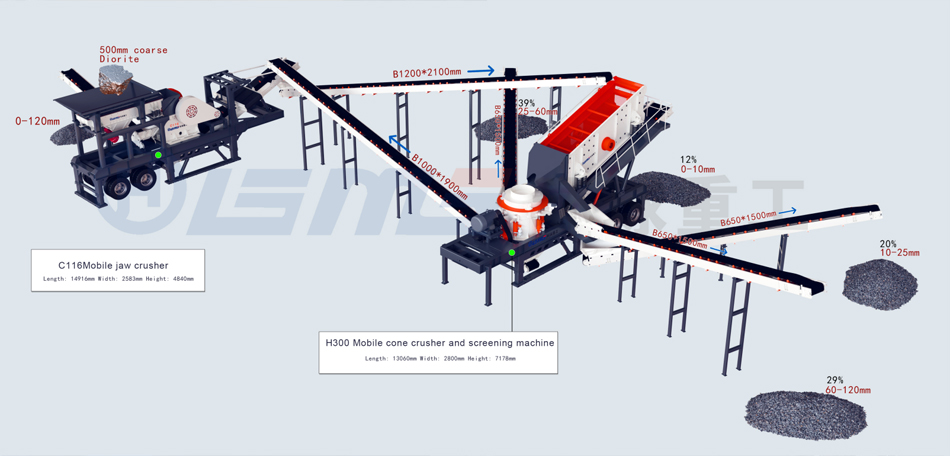

A：Multi-cylinder hydraulic cone crushers have a wide range of application fields. Classified by mobility, they can be divided into modular frame type, wheel-mounted mobile type, tracked mobile type and stationary production line. The hourly output of mobile types ranges from 100 to 350 tons, while the hourly output of stationary types is 400 to 1200 tons.
Technical Data:
| Model | Cavity type | Feed port size(mm) | Tight side feed port size(mm) | Minimum discharge port size(mm) | Motor power(kw) | Yield(t/h) | Weight(t) |
| HP100 | C1(Extra-thick) | 175 | 140 | 19 | 4P 100 | 45-140 | 8.4 |
| C2(Fine) | 125 | 105 | 13 | ||||
| M(Intermediate) | 100 | 70 | 10 | ||||
| F1(Fine) | 71 | 50 | 9 | ||||
| F2(Superfine) | 33 | 20 | 6 | ||||
| HP200 | C2(Coarse) | 235 | 190 | 19 | 4P 160 | 90-250 | 10.4 |
| M(Intermediate) | 171 | 120 | 16 | ||||
| F1(Fine) | 150 | 95 | 13 | ||||
| F2(Superfine) | 116 | 70 | 8 | ||||
| HP300 | C1(Extra-thick) | 265 | 230 | 25 | 4P 220 | 115-440 | 18.1 |
| C2(Coarse) | 240 | 210 | 20 | ||||
| M(Intermediate) | 190 | 150 | 15 | ||||
| F1(Fine) | 145 | 105 | 11 | ||||
| F2(Superfine) | 120 | 80 | 8 | ||||
| HP400 | C1(Extra-thick) | 360 | 290 | 30 | 4P 315 | 140-630 | 25 |
| C2(Coarse) | 310 | 250 | 25 | ||||
| M(Intermediate) | 260 | 196 | 20 | ||||
| F1(Fine) | 182 | 110 | 13 | ||||
| F2(Superfine) | 135 | 90 | 10 | ||||
| HP500 | C1(Extra-thick) | 370 | 330 | 38 | 4P 400 | 175-790 | 36 |
| C2(Coarse) | 320 | 290 | 28 | ||||
| M(Intermediate) | 245 | 210 | 22 | ||||
| F1(Fine) | 180 | 130 | 13 | ||||
| F2(Superfine) | 150 | 95 | 10 | ||||
| HP800 | C1(Extra-thick) | 450 | 352 | 38 | 4P 830 | 260-1200 | 68.5 |
| C2(Coarse) | 373 | 298 | 32 | ||||
| M(Intermediate) | 340 | 275 | 25 | ||||
| F1(Fine) | 280 | 230 | 16 | ||||
| F2(Superfine) | 235 | 150 | 10 |
| Model | 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 45mm | 51mm |
| HP100 | 45-55 | 50-60 | 55-70 | 60-80 | 70-90 | 75-95 | 80-100 | 90-115 | 100-150 | |||
| HP200 | 65-85 | 90-125 | 110-150 | 135-180 | 150-195 | 160-210 | 170-225 | 190-235 | 210-250 | |||
| HP300 | 85-120 | 115-140 | 150-185 | 180-220 | 200-240 | 220-260 | 235-290 | 250-320 | 300-380 | 350-440 | ||
| HP400 | 135-180 | 190-230 | 225-275 | 250-320 | 270-350 | 295-380 | 290-375 | 355-490 | 410-565 | 460-625 | ||
| HP500 | 200-250 | 230-290 | 280-350 | 320-400 | 345-430 | 370-460 | 405-535 | 445-605 | 510-700 | 580-790 | ||
| HP800 | 265-340 | 320-425 | 385-510 | 425-540 | 470-605 | 495-740 | 545-800 | 600-945 | 690-1050 | 785-1200 |
