Name: PE jaw Crusher _ Crusher _ Stone crushing equipment
Brand: GMG Group

Description

The PE series jaw crushers manufactured by HGHI adopt the design principle of compound pendulum jaw crushers and are equipped with an overload protection function. When the equipment is overloaded during material crushing, the toggle plate device will fracture automatically to prevent damage to the main machine caused by sudden load surges.

This machine is widely applied in the primary crushing process of various ores and rocks. It is often matched with cone crushers, impact crushers and sand making machines to form a complete sand aggregate production line.

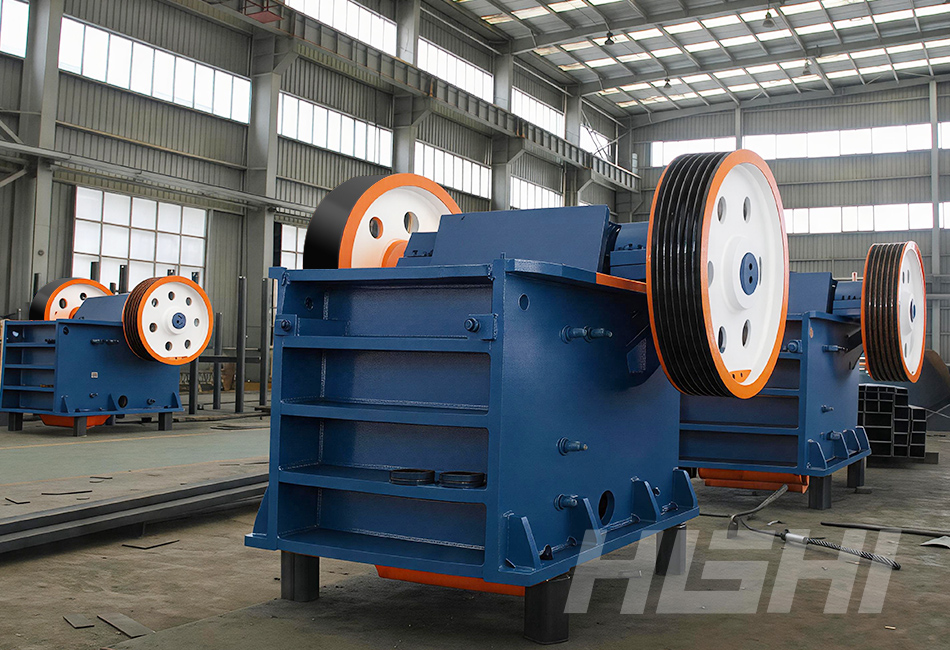

PE Jaw Crusher

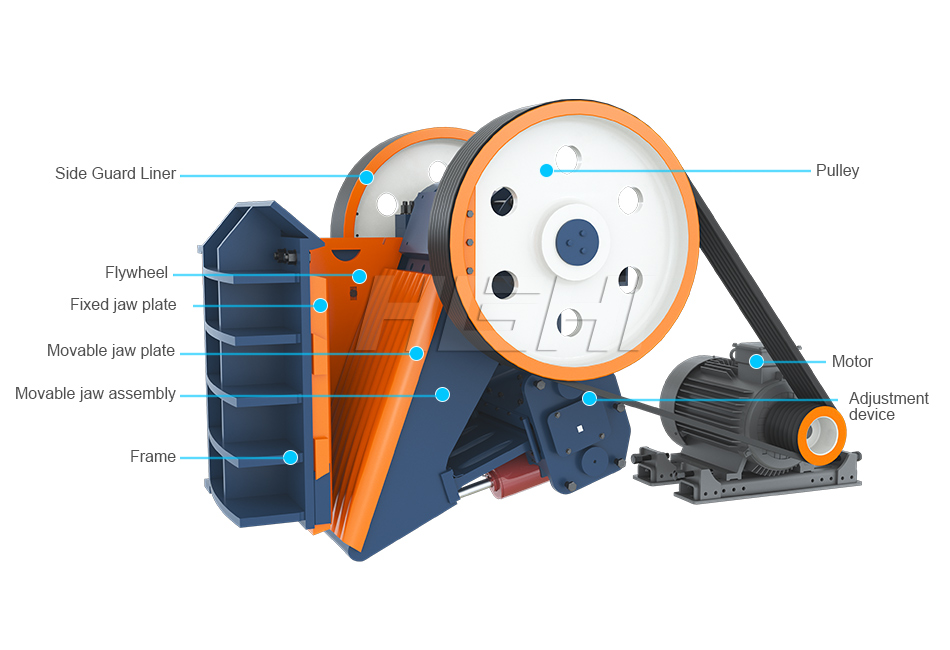

Performance Advantages

1. - Heavy Machine Frame - As the basic frame of the equipment, it adopts box-type welded structure or cast steel components to guarantee integral rigidity and stability.
2.-Crushing Components- HGHI jaw crushers are fitted with high-manganese steel fixed and movable jaw plates. As core wear components directly handling crushing work, their modular design allows quick and easy replacement.
3. -Toggle Plate- The toggle plate not only transmits power, but also acts as an overload protection safety fuse. It will fracture first when uncrushable materials enter the crushing chamber to protect the main machine.
4. -Adjustment Assembly- The position of the toggle plate can be adjusted via wedges or shims to precisely control the discharge particle size.

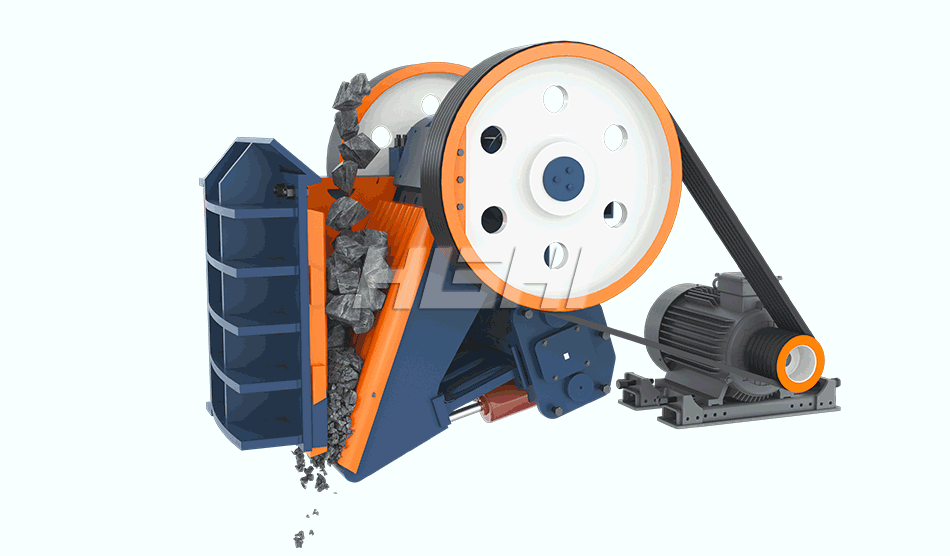

Working Principle

Driven by the motor, the belt pulley and eccentric shaft drive the movable jaw plate to perform periodic reciprocating motion, realizing material crushing by extrusion.

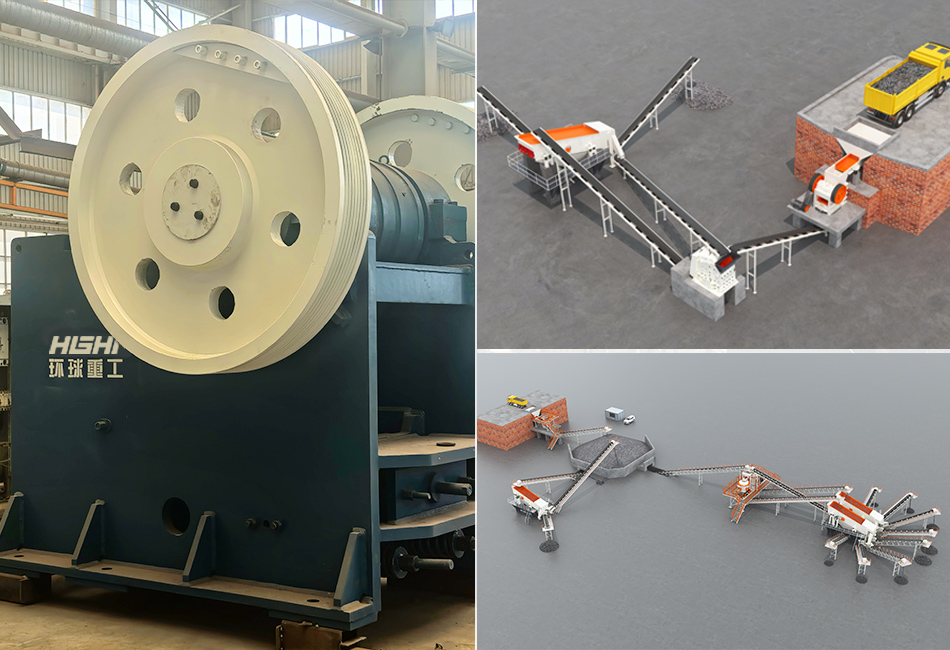

More Pictures

Question&Answer

Q：My raw material is basalt, and the finished products are construction aggregates supplied to mixing plants. The manufactured sand needs to go through washing treatment, with a production capacity of 100 tons per hour.

A： ♦Type: Stationary Crushing Production Line ♦Capacity: 100 tons per hour (customizable) ♦Applicable Materials: Hard ores such as river pebbles, granite and iron ore ♦Standard Configuration: Jaw Crusher + Fine Crushing Compound Cone Crusher + Vibrating Feeder + Vibrating Screen + Belt Conveyors ♦Advantages: Large crushing ratio and high production efficiency, bringing considerable economic benefits for customers..

If you are interested in this 150tph crusher plant, please contact us.

Q：I require the project to be constructed and installed rapidly without concrete civil works. The entire stone production line shall be of all-steel structure, with a capacity of 500 tons per hour. Buffer bins shall be equipped, and each machine shall be fitted with manual operation platforms. The material to be crushed is basalt.

A：Material to be processed: Basalt (high-hardness rock) Designed capacity: 500 t/h (guaranteed output: 450~550 t/h) Construction type: Fully steel modular structure with sled/steel leg base, no concrete foundation required Supporting requirements: Dual steel buffer bins (front-end bin + transfer bin); All equipment equipped with independent steel operating platforms, ladders and safety guardrails Process flow: Raw material bin → Feeder → Jaw crusher (primary crushing) → Transfer bin → Single-cylinder hydraulic cone crusher (secondary crushing) → Multi-cylinder hydraulic cone crusher (fine crushing) → Circular vibrating screen (closed-circuit circulation)

Q：I require the production site to be flexible and quickly relocatable. The materials to be crushed are mainly construction waste and river rock. The capacity should be around 100 tons per hour, with a cost-effective price.

A：The wheel-mounted mobile crusher features flexible site relocation and high cost performance. The mobile jaw crusher is a combined multi-unit equipment. It integrates bin, vibrating feeder, jaw crusher, belt conveyor and mobile chassis on one single vehicle. It can operate independently, or work in combination with other mobile crushers and mobile screening plants..
