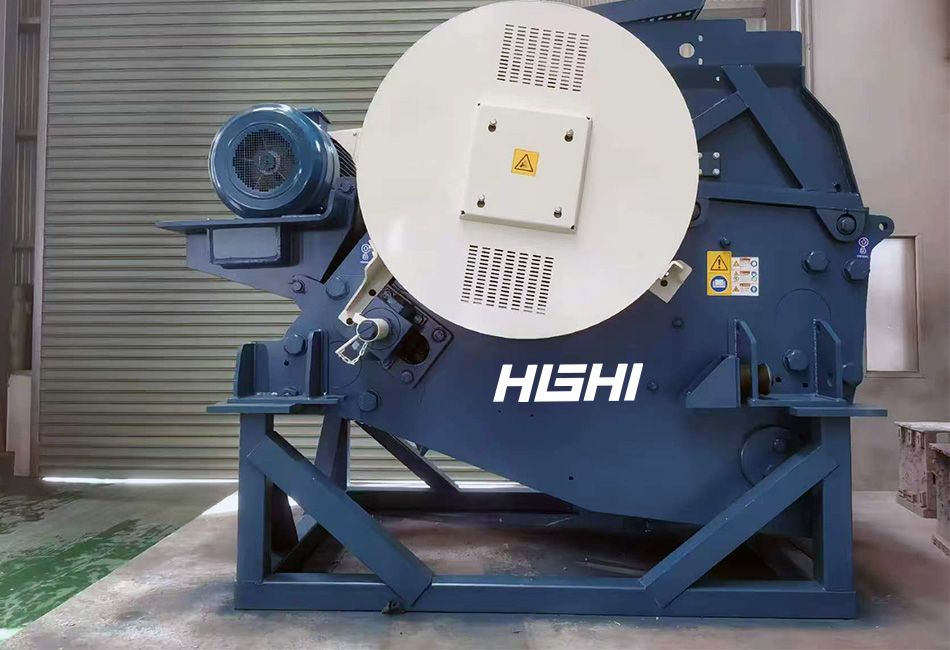

SC jaw Crusher

Description

The jaw crushers supplied by HGHI are engineered for primary crushing. Designed specifically for mines handling hard rock, large feed materials and requiring high production capacity, they boast superior structural strength, higher working efficiency and longer service life.

Applicable materials: River pebbles, quartz stone, limestone, basalt, granite, marble, iron ore, construction waste and others.

These machines can easily process raw stones with a maximum feed size of 1200 mm. The finished particle size is adjustable between 15 mm and 300 mm, with a production capacity of 50 to 1100 tons per hour. The SC series jaw crusher is equipped with centralized hydraulic lubrication and hydraulic wedge adjustment. The discharge opening can be adjusted without shutdown to modify the product grain size, ensuring accurate and hassle-free operation.

With the advantages of large throughput, low energy consumption, robust structure, easy operation and maintenance, as well as long service life, it is widely applied to crush ores, rocks and slags whose compressive strength is no more than 300 MPa.

Performance Advantages

• Deep cavity crushing, energy savingOptimized deep cavity crushing, and no dead Angle, feed capacity and crushing efficiency are greatly improved, single energy saving 15%-30%, system energy saving more than double.
• Advanced technology, crushing force Using advanced crushing technology and digital processing equipment, the internal structure is precise and the crushing capacity is enhanced.
• Easy maintenance, improve production efficiency The equipment adopts grease centralized lubrication system, which is safe and reliable, convenient and fast maintenance work, and reduces the downtime maintenance time.
• Green and environmental protection Low noise, equipped with dust removal device, reduce dust generation, reduce pollution, strictly comply with national environmental standards.

Working Principle

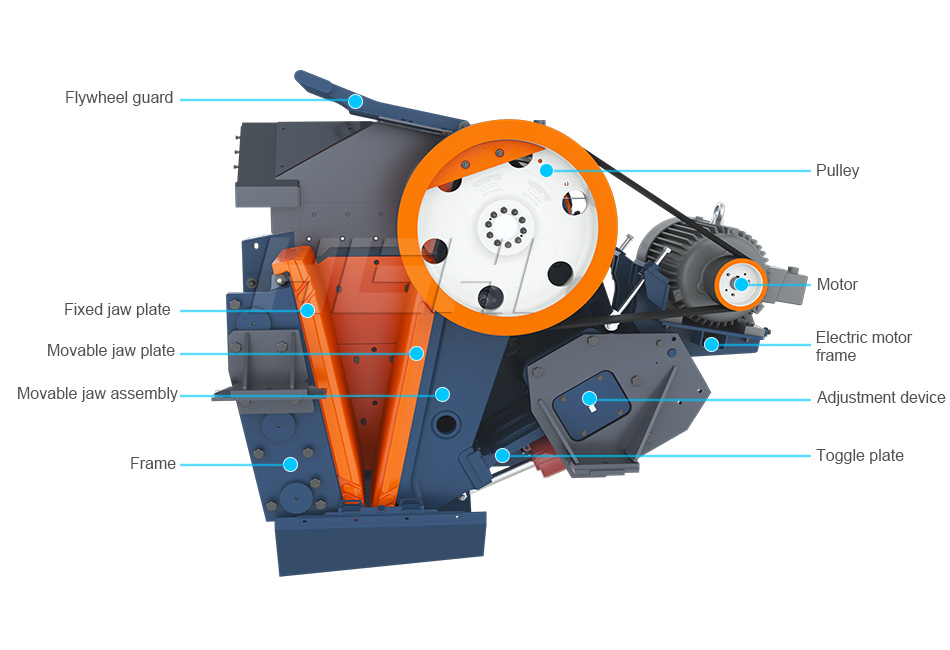

This jaw crusher adopts the curved extrusion crushing method. When in operation, the motor drives the belt and pulley, and the rotating eccentric shaft drives the moving jaw to perform up-and-down reciprocating motion. As the moving jaw moves upward, the angle between the toggle plate and the moving jaw increases, pushing the moving jaw plate close to the fixed jaw plate. The materials are squeezed and split to complete crushing. When the moving jaw moves downward, the angle becomes smaller. The moving jaw plate separates from the fixed jaw plate under the action of the tie rod and spring, and the crushed materials are discharged from the bottom of the crushing chamber. Driven by the continuous rotation of the motor, the crusher cycles through crushing and discharging, enabling continuous large-scale production..

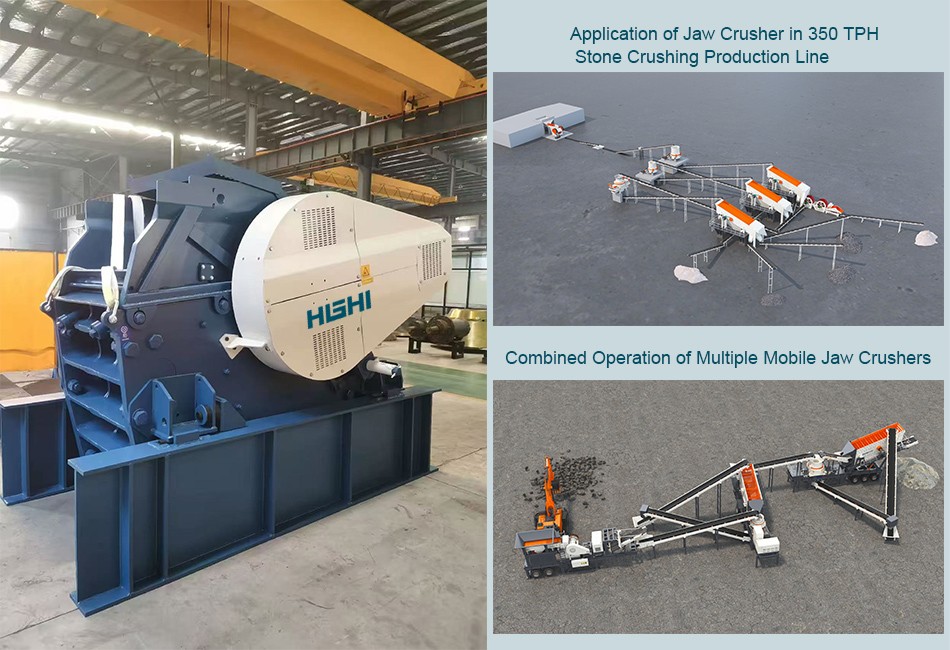

More Pictures

Question&Answer

Q：I require a granite crushing system with an hourly output of 150 tons, capable of producing four specifications of clean aggregate. Kindly provide the relevant configuration scheme.

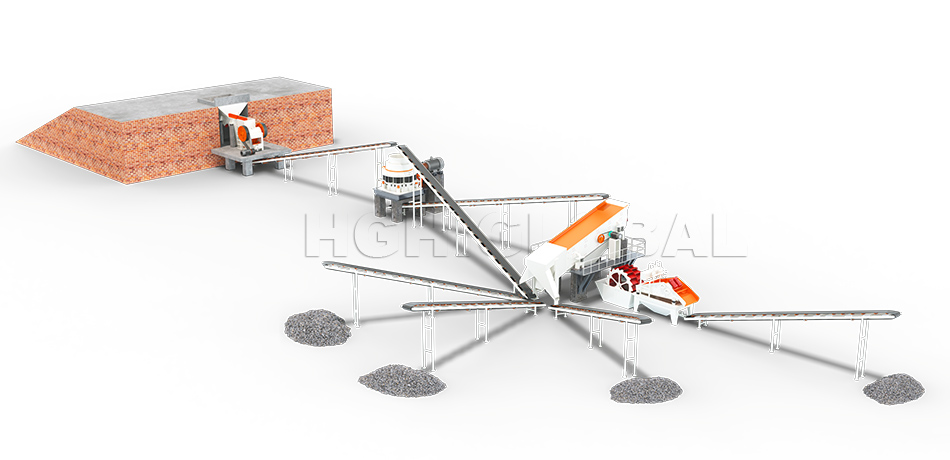

A：The jaw crusher serves as the primary crusher in the stationary stone production line. This multi-stage crushing configuration can process medium and high hardness materials such as granite, iron ore, limestone and cobblestone at a capacity of 150 tons per hour. The main equipment consists of vibrating feeder, jaw crusher, vibrating screen and belt conveyor.

If you are interested in this 150tph crusher plant, please contact us.

Q：I require the project to be constructed and installed rapidly without concrete civil works. The entire stone production line shall be of all-steel structure, with a capacity of 500 tons per hour. Buffer bins shall be equipped, and each machine shall be fitted with manual operation platforms. The material to be crushed is basalt.

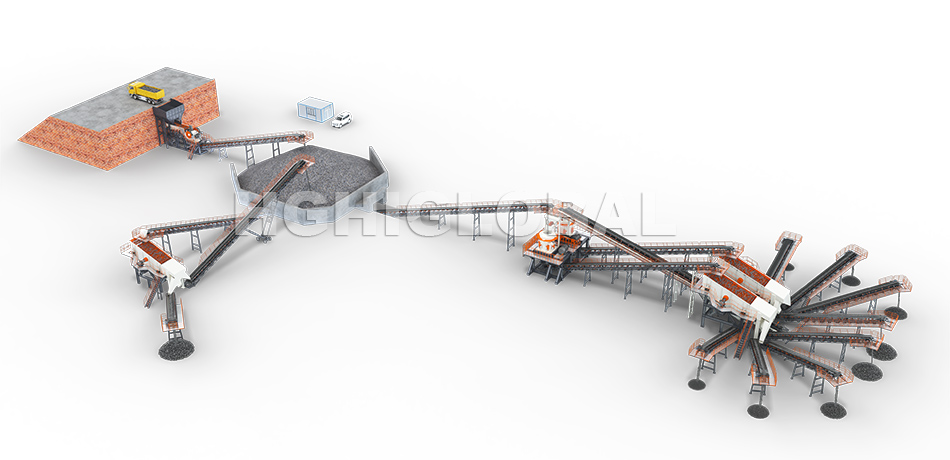

A：Material to be processed: Basalt (high-hardness rock) Designed capacity: 500 t/h (guaranteed output: 450~550 t/h) Construction type: Fully steel modular structure with sled/steel leg base, no concrete foundation required Supporting requirements: Dual steel buffer bins (front-end bin + transfer bin); All equipment equipped with independent steel operating platforms, ladders and safety guardrails Process flow: Raw material bin → Feeder → Jaw crusher (primary crushing) → Transfer bin → Single-cylinder hydraulic cone crusher (secondary crushing) → Multi-cylinder hydraulic cone crusher (fine crushing) → Circular vibrating screen (closed-circuit circulation)

Q：I require the production site to be flexible and quickly relocatable. The materials to be crushed are mainly construction waste and river rock. The capacity should be around 100 tons per hour, with a cost-effective price.

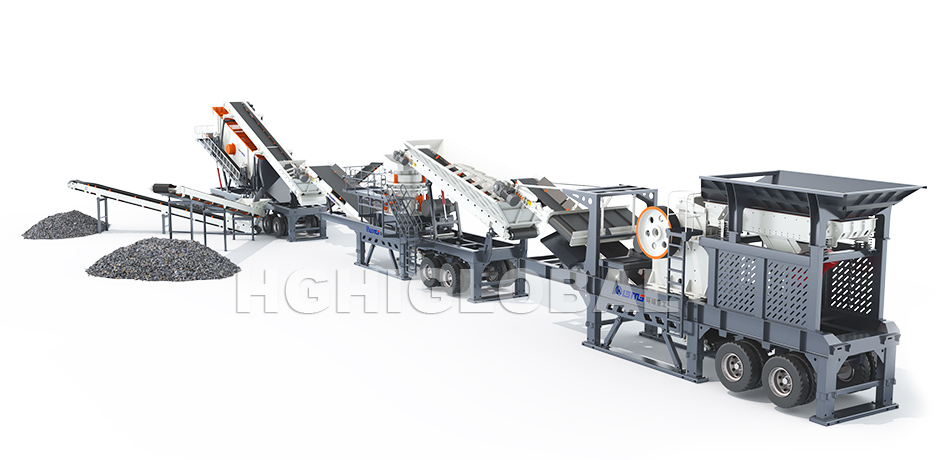

A：The wheel-mounted mobile crusher features flexible site relocation and high cost performance. The mobile jaw crusher is a combined multi-unit equipment. It integrates bin, vibrating feeder, jaw crusher, belt conveyor and mobile chassis on one single vehicle. It can operate independently, or work in combination with other mobile crushers and mobile screening plants..

If you are interested in this 150tph crusher plant, please contact us.

Technical Data:
